True Combat Value of Wootz

tsubame1 · 28th October 2006, 02:37 PM

Quote:

Originally Posted by Chris Evans

Hi Carlo,

Absolutely so.

I don't know if you came across this article:

http://perso.wanadoo.fr/artsguerrier...abrekatana.htm

Unfortunately it is in French, but can be translated with Alta Vista's Babelfish. Makes for very interesting reading. I suspect that the sabre in question must have been an experimental one, because all the 19th century military sabres that I have seen, had edge geometries very similar to that of Japanese swords.

Deep fullers can reduce the friction encountered, but that to me is something of an overstated argument because on sabres, the COP usually falls right where the fuller ends.

Here are some measurements that I have made on two of my sabres:

Ames 1862 :Edge angle at COP: 22deg At 3"from pt 17.68deg Blade thickness at COP 5.5mm and 3"from pt 3.5mm

Brit 1854 :Edge angle at COP: 23.53deg At 3"from pt:20.6deg. Blade thickness at COP 5mm and at 3"from pt 4mm

Perhaps you could tell us how these geometries compare with that of Japanese blades. Unfortunately, I do not have one at the moment.

Cheers
Chris

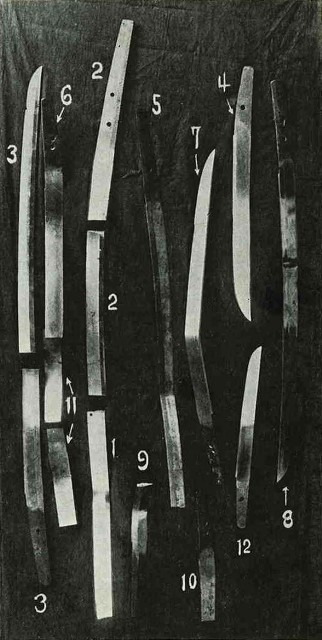

It's hard to me to give edge angles due to the above mentioned Niku that offers a curved surface to measure. Kasane (spine thickness) on many of either my long blades and/or which I've access to and/or in my files is in that range at COP, a bit less tapering toward the point. Mihaba (width) is crucial and very variable too. Anyway I'm not sure the different processes of making (mass versus custom) can give us a good comparison between the two.
Military swords, being subjected to standardization, are by far easier to
compare (type versus type) then blades made to tightly fit the needs of a specific man, not to talk about difference in tall between europeans and japaneses and avoiding the nightmare of the different smithing schools.
Japanese long blades had only a top-lenght standardization in Edo, every weight or thickness or width allowed as far as it was functional, so it can vary a lot and the homogeneity is only apparent, IMHO. Same for curvature. Another difference is that fullers (Hi) in japanese weapons most of the times passes the COP and its positive/negative phisical action versus the gain in weight is highly debated by Tameshigiri (cutting) practicioners.

ariel · 28th October 2006, 04:52 PM

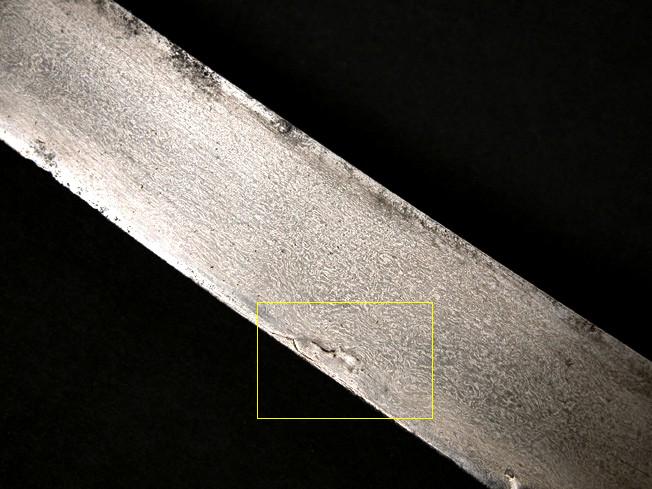

The "viscosity" of the material is one thing. But my question is somewhat different: what about cutting hard steel? Of course, there is the issue of lateral displacement and mechanical engineers among us can easily calculate the proportion of energy going laterally in a wedge.
But there is also an issue of hardness and resiliency: can one reasonably expect a superb wootz sword to cut through a substantial steel gun chain several times without being broken? Even a minute angle of contact would redistribute the energy to shatter the blade. Similarly, while we see old steel mails with cuts ( and we do not know whether these were done by an axe), can we expect a wootz blade slice through multiple, hardened rings to effect a " total body" cut?
My suspicion is that there is much more than the quality of steel in the final effect. Also, wootz might have been much keener than regular steel, but it was of no advantage when dealing with real life objects.

Jeff Pringle · 28th October 2006, 05:21 PM

Quote:

Also, wootz might have been much keener than regular steel, but it was of no advantage when dealing with real life objects.

Yes, it would just mean you would not have to sharpen it as often - that may have been the most obvious practical effect of wootz' superiority as a steel in it's era.
I've only seen analyses of early medaeval european mail, but those show iron, not steel for the link material.

Gt Obach · 28th October 2006, 06:11 PM

also...... chain was usually made of wrought iron.. ... and this is a soft metal.... i really doubt that steel was used for this at this time.. ( big difference )

with a decent blade... you can cut into mild iron without much problem... i've done it several times... actually..... in the forge i have a cold cut that i use weekly to cut 1/2 mild rounds..... and rarely have to dress the edge...

i realize that not everyone deals with this daily basis... but a properly heat treated piece of steel with good edge geometry should have no problem with mild iron or wrought iron..

on cutting....... theres also a big difference between a chopping cut and a draw cut...... with a draw cut......distal taper has a big effect when pulling the blade through the target... .... aswell as adding to a swords ability to resist bending in a local area

Greg

Gt Obach · 28th October 2006, 07:16 PM

actually... if you do a search you can find plenty on wrought iron chain... .... -wrought iron being iron made by a reduction process in a bloom furnance... ... - a spongy bloom of iron and silicate slag is produced..... this is then folded and forge welded many times... to squeeze out some of the silicate slags.... and evenly spread out the remaining stringers....

the low grade has lots of large stringers... and used for stuff like wagon wheels...
-- if you fold the lower grade many more times.....it becomes more homogenous .... and this is what you would use for chain..... still today... if you want some high grade wrought for knife fittings... you still can get this will large boat or anchor chains.....

-- and it is soft... very little carbon in it.... and not hardenable (unless altered) ..... corrosion resistant, and tough, fiberous, .... very desirable for its easy forge welding

both of my peter wright anvils have a wrought iron body and a steel plate for the face... and its only a 100 years old... .. so wrought was still used for a long time

Greg

Chris Evans · 29th October 2006, 03:06 AM

ariel,

I ask if you would be surprised if a chisel would cut through the said chain/armour. I think that the safe answer is no. Then why not?

Because a chisel's edge has a different geometry, more obtuse, AND because several hammer blows can impart the required energy - One just keeps on hammering until the cut is effected.

Of course, such edge geometry, except on a very specialized sword, would not do at all for an all purpose weapon. And then a single cut is unlikely to have sufficient energy to finish the job.

I have a utility knife that I made from a high speed alloy tools steel blade. Hard as hell and full of carbides (can barely sharpen it) . When a saw, it used to cut steel bars. Once, for an experiment I tried to cut a small, around 1mm dia, nail with it and the edge started to nick. Why? because its low angle edge could not support the load imposed on it. Cuts fine otherwise, but not nails. The steel is the same, but the edge geometry has changed.

GT Obach: A small comment on wrought iron chain

You are spot in your remarks. I just would like to add, that those slag inclusions in wrought iron chain are highly desirable because they act as crack arrestors. This and its superior corrosion resistance is why wrought iron is the preferred metal for ship's anchor chain - Very tough and shock absorbent, yet soft, malleable and easily hammer welded.

Cheers
Chris

ariel · 29th October 2006, 03:25 AM

So, Chris and Greg, as the most knowledgeable "metal" people around, here is the question to summarize all questions: is there a real practical, combat advantage of wootz over a good steel? I am not talking about super-duper modern steels , but want to compare apples to apples: take a 17-18th century wootz shamshir or khanda (made by the best masters of the time)and pit it against best contemporary European blades.

Assuming the task set for all of them is not a show-y handkercief cutting, but a real battle use by competent cavalry men, will there be an appreciable difference in performance? What advantages or disadvantages would you predict for each?

28th October 2006, 04:52 PM	#2
ariel Member Join Date: Dec 2004 Location: Ann Arbor, MI Posts: 5,503	The "viscosity" of the material is one thing. But my question is somewhat different: what about cutting hard steel? Of course, there is the issue of lateral displacement and mechanical engineers among us can easily calculate the proportion of energy going laterally in a wedge. But there is also an issue of hardness and resiliency: can one reasonably expect a superb wootz sword to cut through a substantial steel gun chain several times without being broken? Even a minute angle of contact would redistribute the energy to shatter the blade. Similarly, while we see old steel mails with cuts ( and we do not know whether these were done by an axe), can we expect a wootz blade slice through multiple, hardened rings to effect a " total body" cut? My suspicion is that there is much more than the quality of steel in the final effect. Also, wootz might have been much keener than regular steel, but it was of no advantage when dealing with real life objects.

28th October 2006, 06:11 PM	#4
Gt Obach Member Join Date: Mar 2005 Posts: 116	also...... chain was usually made of wrought iron.. ... and this is a soft metal.... i really doubt that steel was used for this at this time.. ( big difference ) with a decent blade... you can cut into mild iron without much problem... i've done it several times... actually..... in the forge i have a cold cut that i use weekly to cut 1/2 mild rounds..... and rarely have to dress the edge... i realize that not everyone deals with this daily basis... but a properly heat treated piece of steel with good edge geometry should have no problem with mild iron or wrought iron.. on cutting....... theres also a big difference between a chopping cut and a draw cut...... with a draw cut......distal taper has a big effect when pulling the blade through the target... .... aswell as adding to a swords ability to resist bending in a local area Greg

28th October 2006, 07:16 PM	#5
Gt Obach Member Join Date: Mar 2005 Posts: 116	actually... if you do a search you can find plenty on wrought iron chain... .... -wrought iron being iron made by a reduction process in a bloom furnance... ... - a spongy bloom of iron and silicate slag is produced..... this is then folded and forge welded many times... to squeeze out some of the silicate slags.... and evenly spread out the remaining stringers.... the low grade has lots of large stringers... and used for stuff like wagon wheels... -- if you fold the lower grade many more times.....it becomes more homogenous .... and this is what you would use for chain..... still today... if you want some high grade wrought for knife fittings... you still can get this will large boat or anchor chains..... -- and it is soft... very little carbon in it.... and not hardenable (unless altered) ..... corrosion resistant, and tough, fiberous, .... very desirable for its easy forge welding both of my peter wright anvils have a wrought iron body and a steel plate for the face... and its only a 100 years old... .. so wrought was still used for a long time Greg

29th October 2006, 03:06 AM	#6
Chris Evans Member Join Date: Mar 2005 Location: Australia Posts: 685	ariel, I ask if you would be surprised if a chisel would cut through the said chain/armour. I think that the safe answer is no. Then why not? Because a chisel's edge has a different geometry, more obtuse, AND because several hammer blows can impart the required energy - One just keeps on hammering until the cut is effected. Of course, such edge geometry, except on a very specialized sword, would not do at all for an all purpose weapon. And then a single cut is unlikely to have sufficient energy to finish the job. I have a utility knife that I made from a high speed alloy tools steel blade. Hard as hell and full of carbides (can barely sharpen it) . When a saw, it used to cut steel bars. Once, for an experiment I tried to cut a small, around 1mm dia, nail with it and the edge started to nick. Why? because its low angle edge could not support the load imposed on it. Cuts fine otherwise, but not nails. The steel is the same, but the edge geometry has changed. GT Obach: A small comment on wrought iron chain You are spot in your remarks. I just would like to add, that those slag inclusions in wrought iron chain are highly desirable because they act as crack arrestors. This and its superior corrosion resistance is why wrought iron is the preferred metal for ship's anchor chain - Very tough and shock absorbent, yet soft, malleable and easily hammer welded. Cheers Chris

29th October 2006, 03:25 AM	#7
ariel Member Join Date: Dec 2004 Location: Ann Arbor, MI Posts: 5,503	So, Chris and Greg, as the most knowledgeable "metal" people around, here is the question to summarize all questions: is there a real practical, combat advantage of wootz over a good steel? I am not talking about super-duper modern steels , but want to compare apples to apples: take a 17-18th century wootz shamshir or khanda (made by the best masters of the time)and pit it against best contemporary European blades. Assuming the task set for all of them is not a show-y handkercief cutting, but a real battle use by competent cavalry men, will there be an appreciable difference in performance? What advantages or disadvantages would you predict for each?
