Indian Matchlock with sprung flashpan cover

stenoyab · 8th February 2016, 10:05 AM

Thanks Richard,
Had read about Sangster last year, but discounted him as I assumed "trigger" to refer to the trigger of the matchlock, rather than purely the catch to "trigger" the release of the pan cover. So I was thinking his invention was a pan cover that was released as you squeezed the "trigger" to fire.

However. reading on in "Firearms of the Islamic World" (Elgood) P167", commenting on guns made at Mysore, states "The automatic pan opener is a great improvement on Sangster's design, made at Agra a short time earlier."

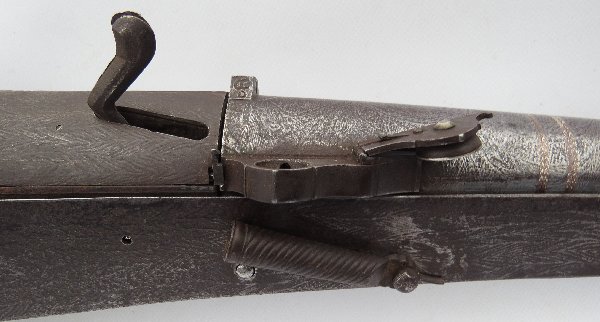

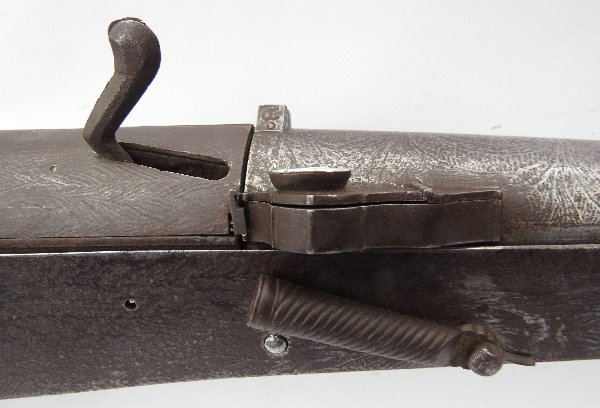

So I think you are correct and this match lock is almost certainly an example of Sangsters spring pan.

stenoyab · 8th February 2016, 11:40 AM

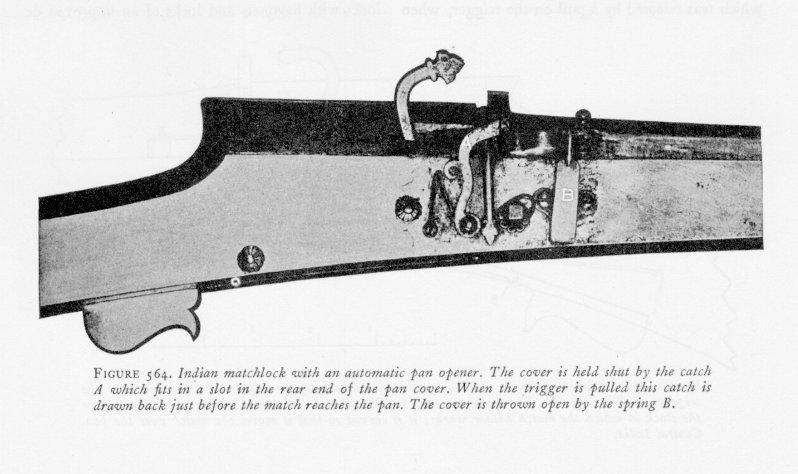

Looking at the fine print further in Elgoods references I see he mentions a image of the flash pan in "A Glossary of the Construction, Decoration and Use of Arms and Armor in All Countries and in all times" by George Cameron Stone as figure 564.

But although he references it with regards to Sangster's design from Agra, I think it is the improved "automatic" design from Mysore.

(image of fig.564 from stones included for academic interest only)

Pukka Bundook · 9th February 2016, 04:46 AM

This latter design in your last post, I see as Indian, Stenoyab.

It hasn't the clean look of the other, which I am sure is made or designed by Sangster.
Probably others tried to make something similar, if not in mechanics, at least in function.

Yours isn't just a munitions grade piece, and probably variations were made on the same basic theme for local worthies and as examples.
As we had up to this time, no known examples of this mechanism by Sangster, I believe yours is the first to come to light!

Congratulations, and I am so pleased you managed to save this one!

Richard.
