#1 |
Member
Join Date: Dec 2014
Posts: 33
|
![]()

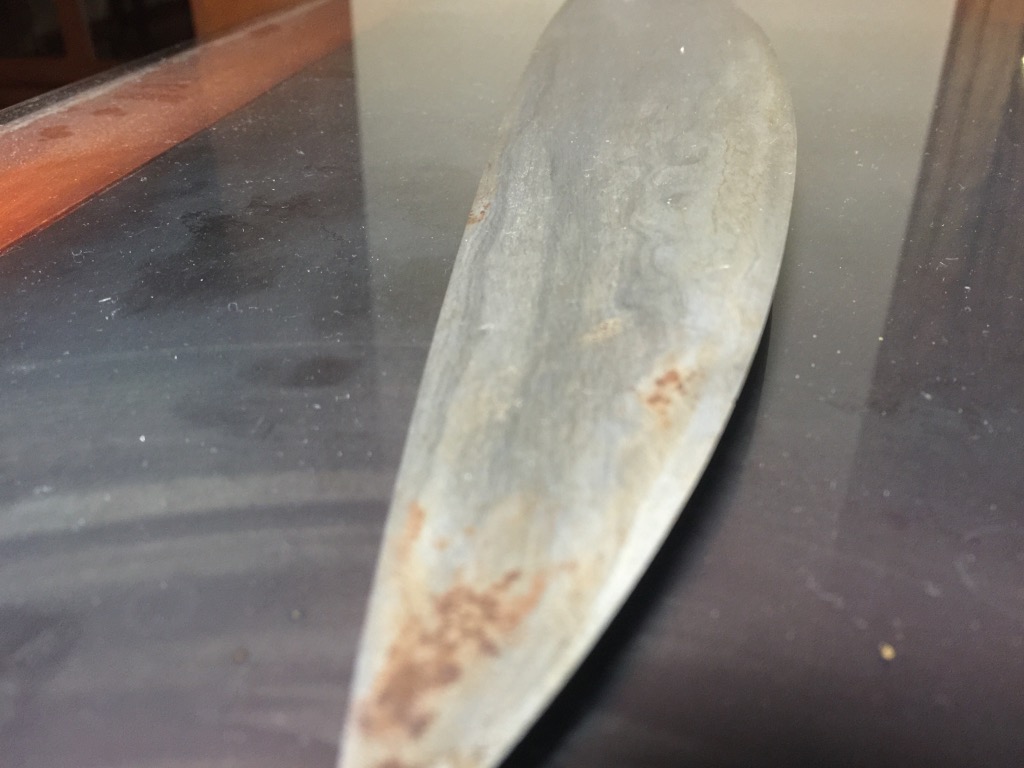

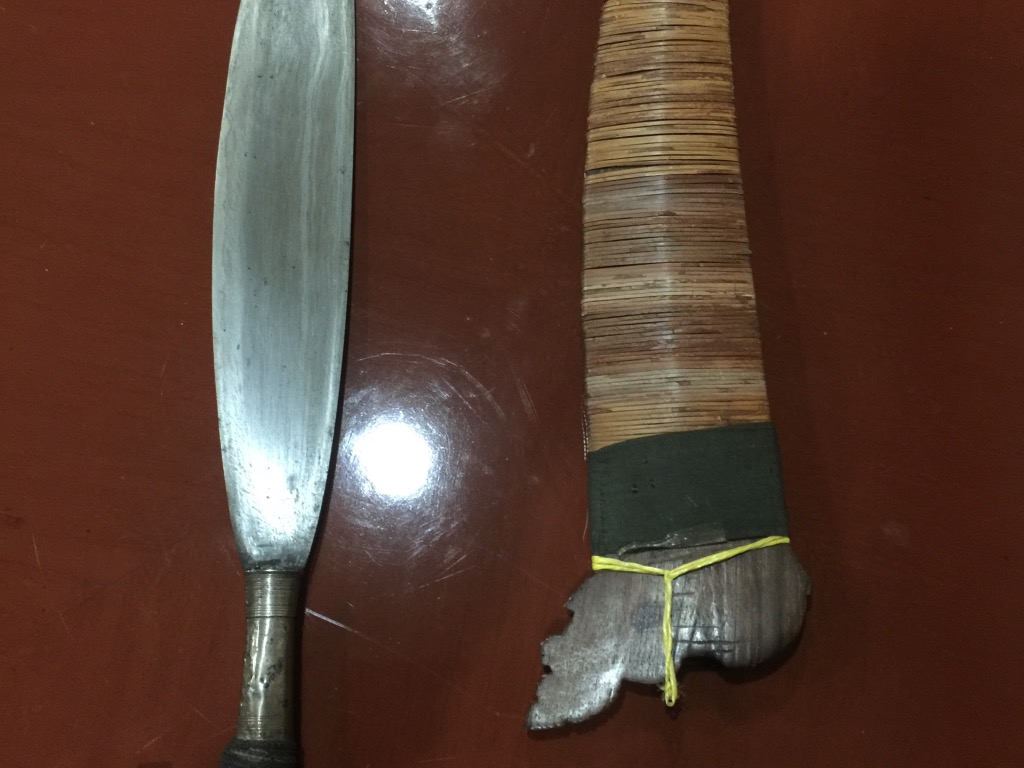

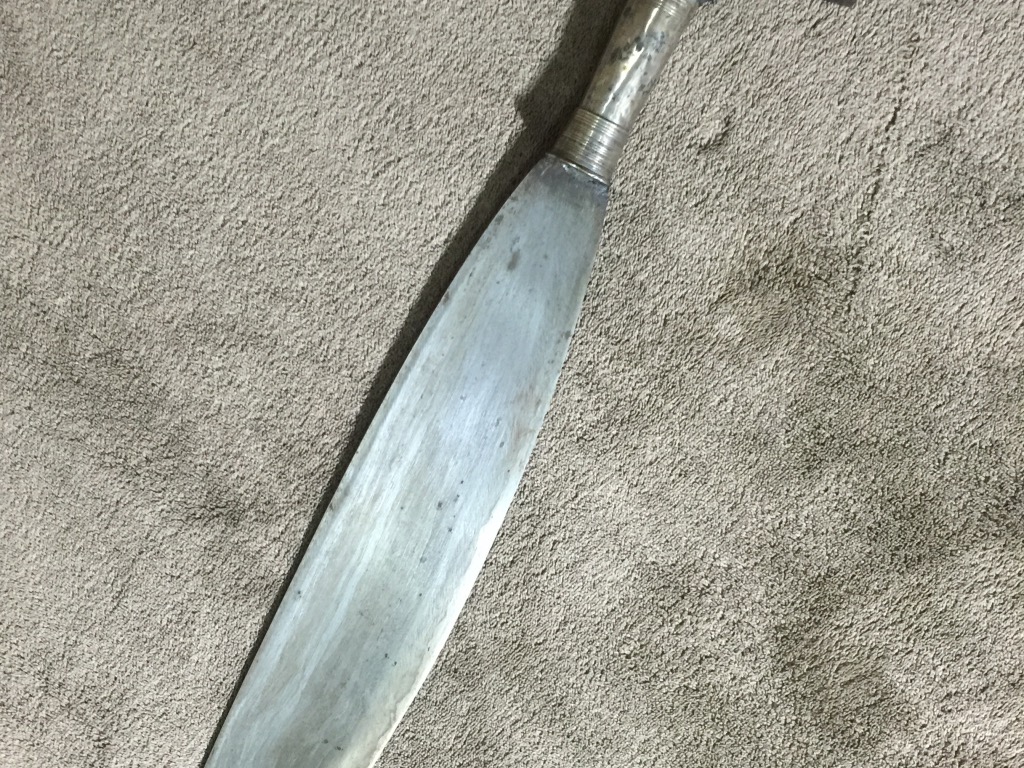

I purchased this from Mang Ven again the other day only because of the very faint possibility of twist core laminations in the middle. I shone a LED flashlight on it and there seemed to be an ever so slight twist in an area at the middle of the blade. I have tried my best to show it but even then, it's very very faint.
I normally etch after polishing in warm white vinegar, but in thise case, should I look for FeCL? Or do you think the vinegar would be enough? |
![]() |
![]() |
![]() |
#2 |
Member
Join Date: Jan 2005
Posts: 478
|
![]()
Well, as you said I see something in the middle but to faint to tell. Could be twistcore could be lamination. I would go with the vinegar first, just my 2 cents.
|
![]() |
![]() |
![]() |
#3 |
Member
Join Date: Aug 2007
Location: Germany, Dortmund
Posts: 8,716
|
![]()
Agree with Mross. Think is just very fine lamination. Nice barong.
Regards, Detlef |
![]() |
![]() |
![]() |
#4 | ||
Member
Join Date: Apr 2005
Posts: 3,252
|
![]()
Hello Joren,
Quote:
In any case, the clear linear pattern is not that common and a good addition to any Moro collection. Quote:
A quick wipe with ferric chloride is faster for exploring laminations and pattern welding and completely reversible with ample neutralisation, and a final round of polishing and etching with vinegar (or coconut water). Just make sure that ferric chloride does't get into any cracks and crevices (especially at the base of the hilt), is washed off with copious amounts of water, and thoroughly neutralised since it is really corrosive and keeps nagging on any blade/tang (or many other metals as well as organic materials) if any traces are left. Regards, Kai |
||
![]() |
![]() |
![]() |
#5 |
Member
Join Date: Dec 2014
Posts: 33
|
![]()
Ah, that makes me not want to risk FeCL on such a nice piece. I'll go the vinegar route. Actually I already started polishing one side so I suppose there's no turning back.
|
![]() |
![]() |
![]() |
#6 |
Member
Join Date: Dec 2014
Posts: 33
|
![]()

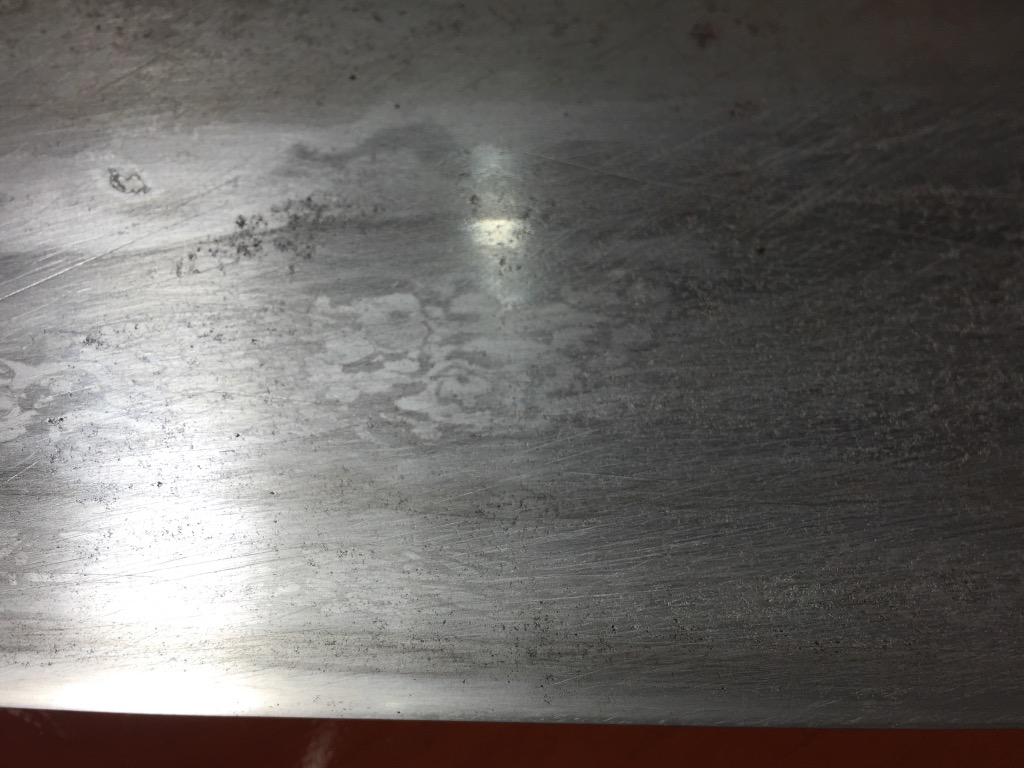

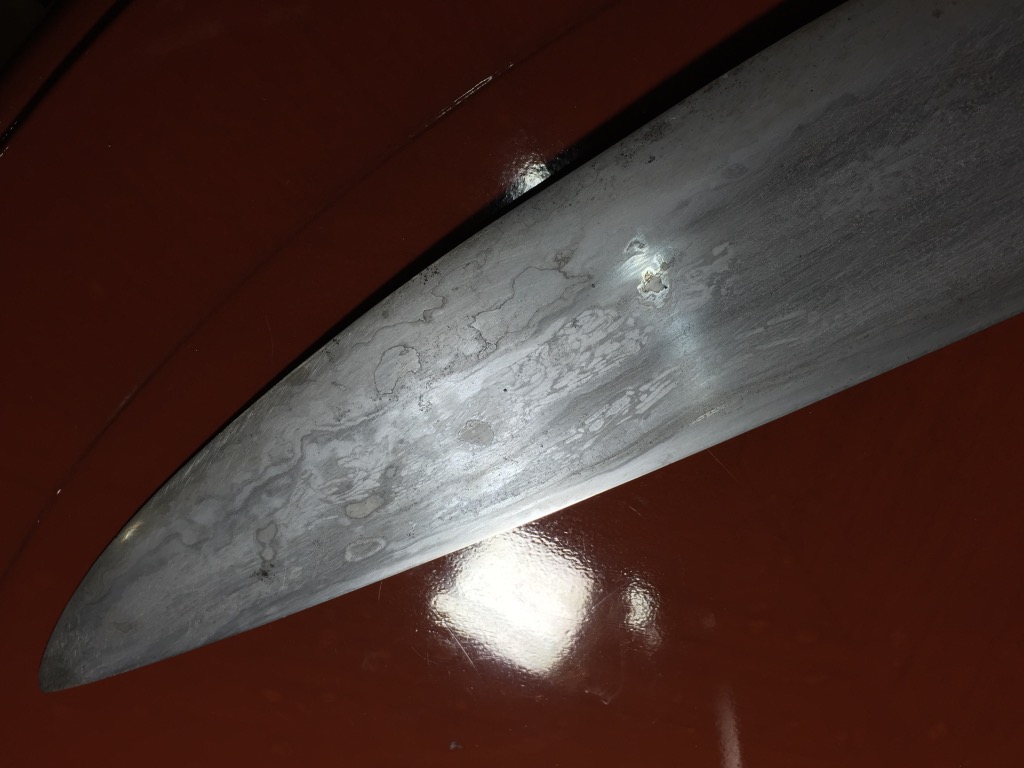

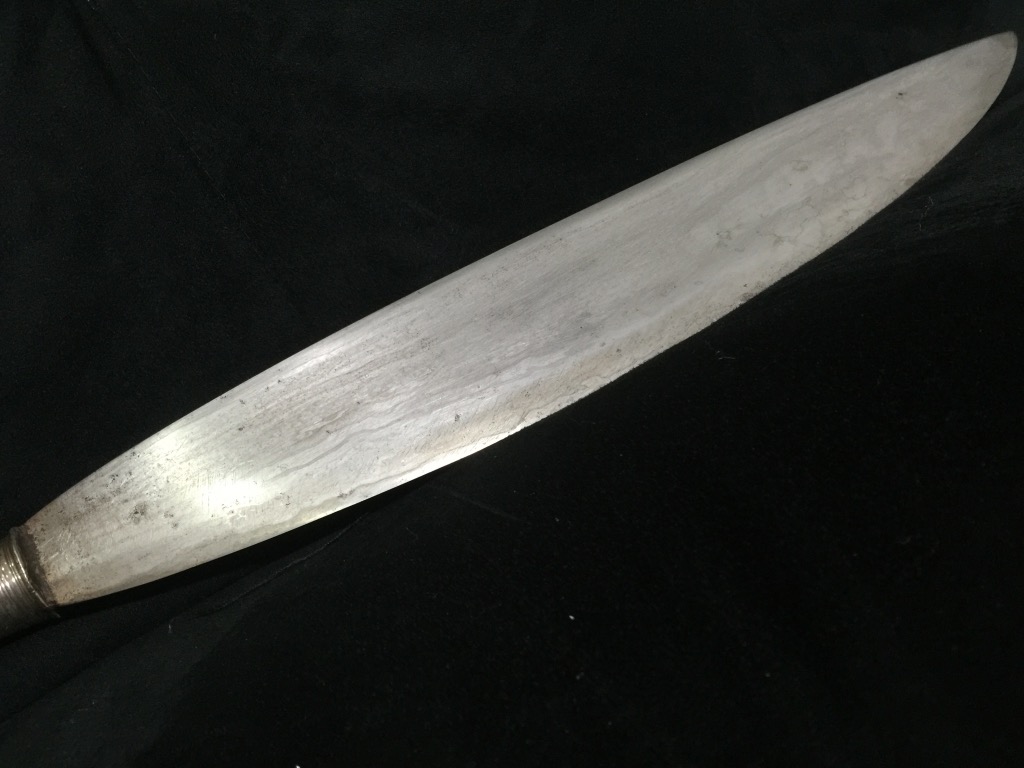

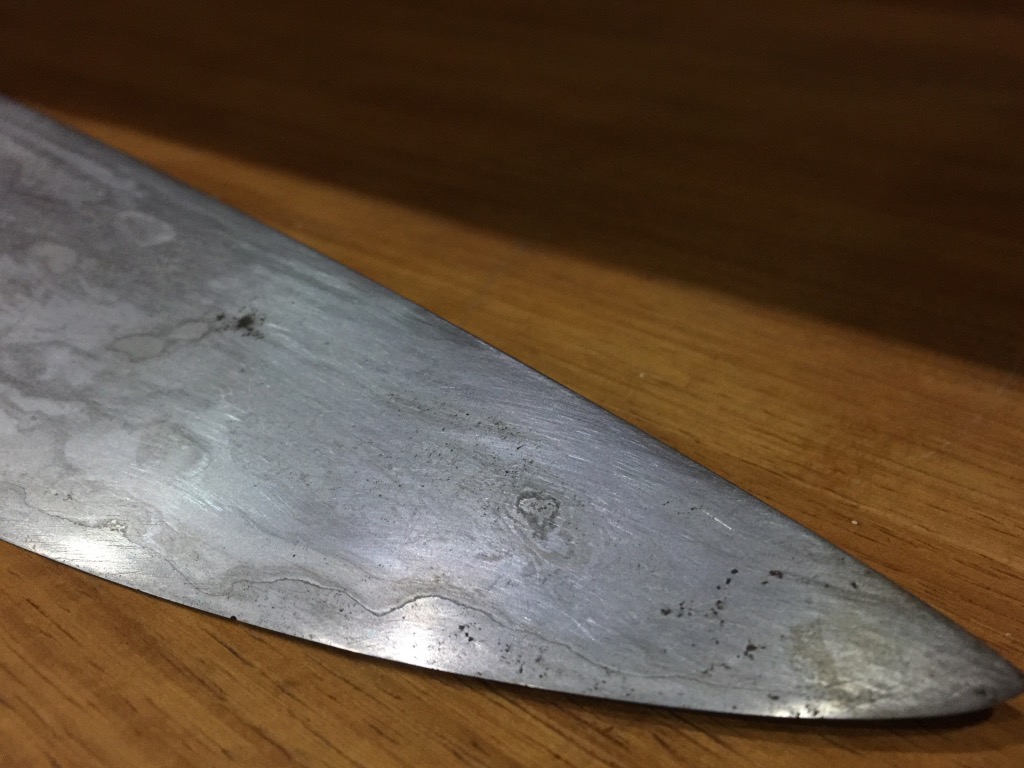

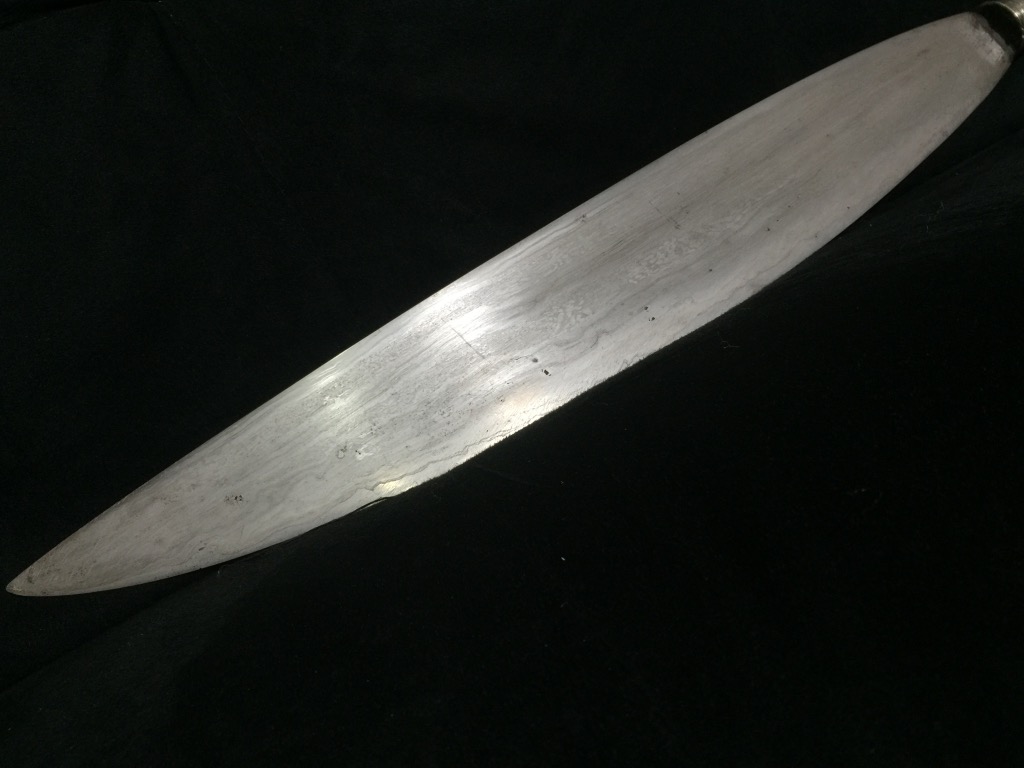

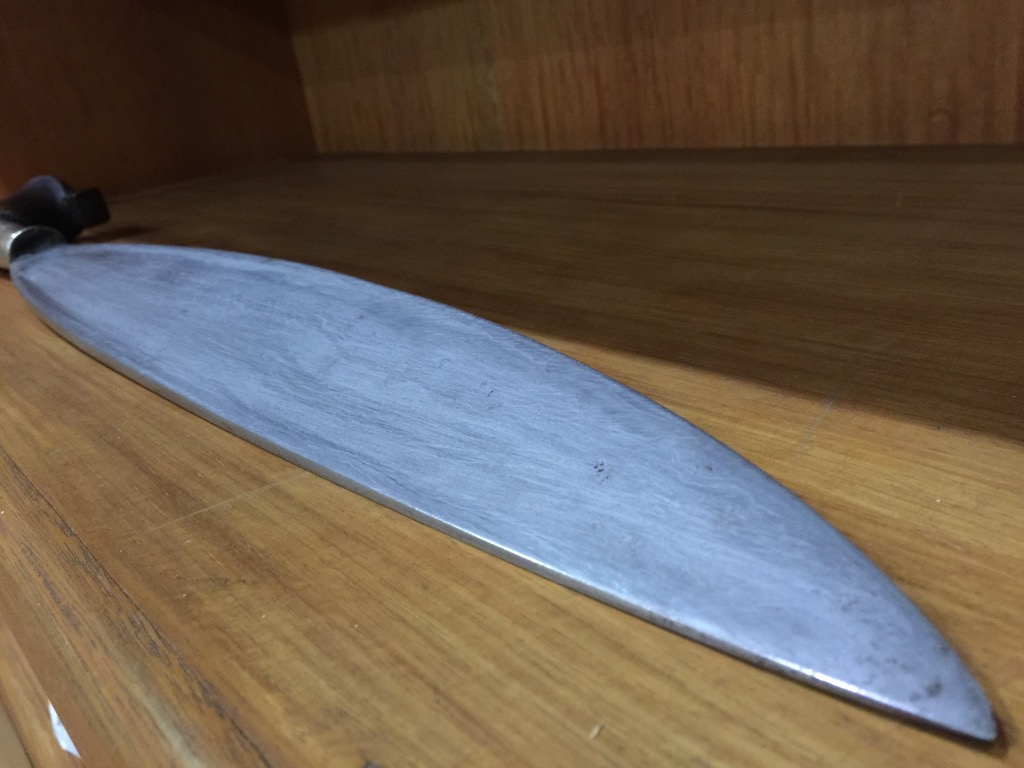

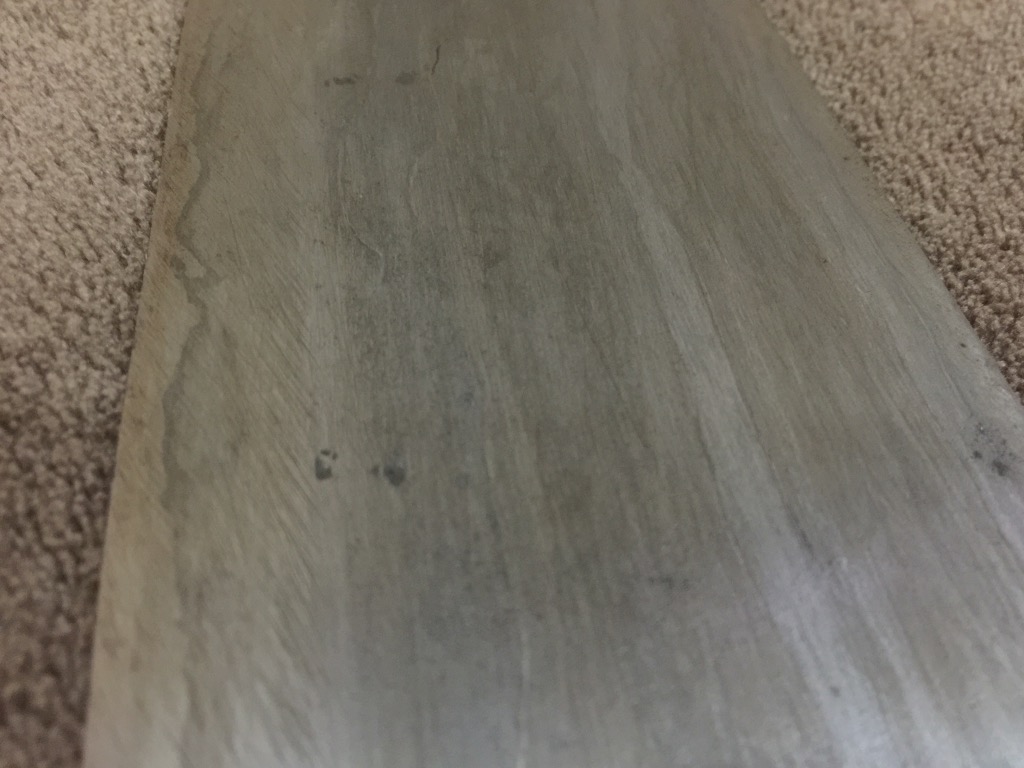

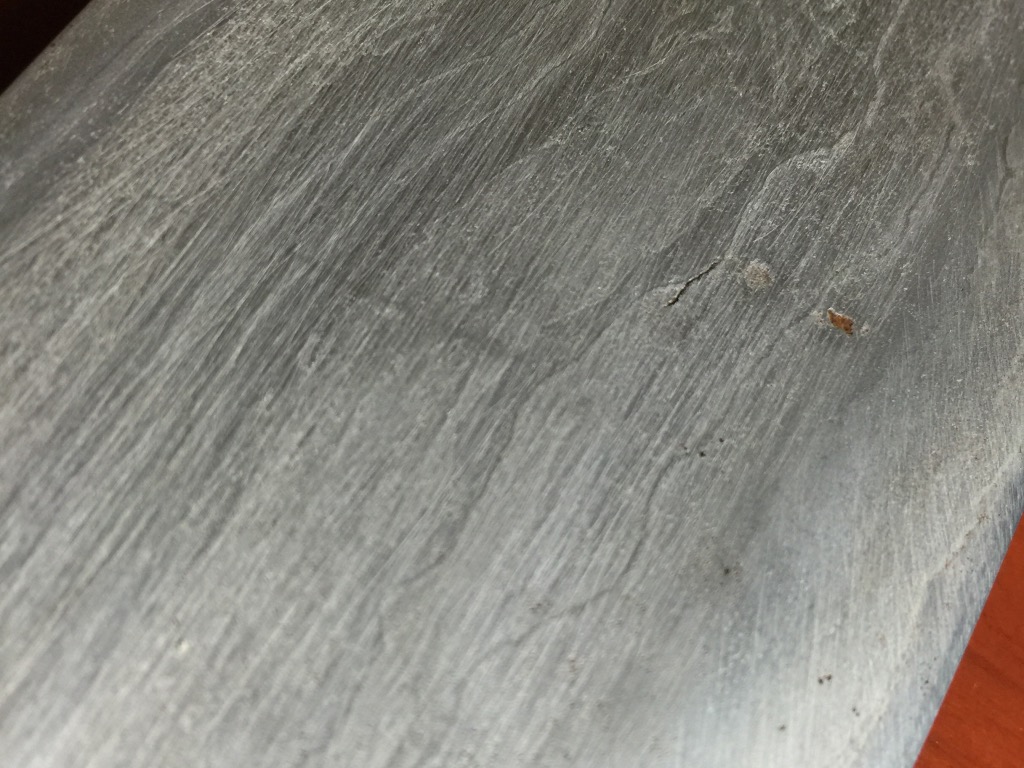

Clearly no twistcore, but a nice lamination indeed. I need to etch it deeper to bring out the full pattern but ran out of vinegar. Will continue the etch next week (and might re-polish the whole thing - there were plenty of deep scratches left from an old sharpening).
Joren Edit: Pics didn't attach initially. Last edited by Croccifixio; 22nd July 2016 at 02:24 PM. |
![]() |
![]() |
![]() |
#7 |
EAAF Staff
Join Date: Dec 2004
Location: Louisville, KY
Posts: 7,189
|
![]()

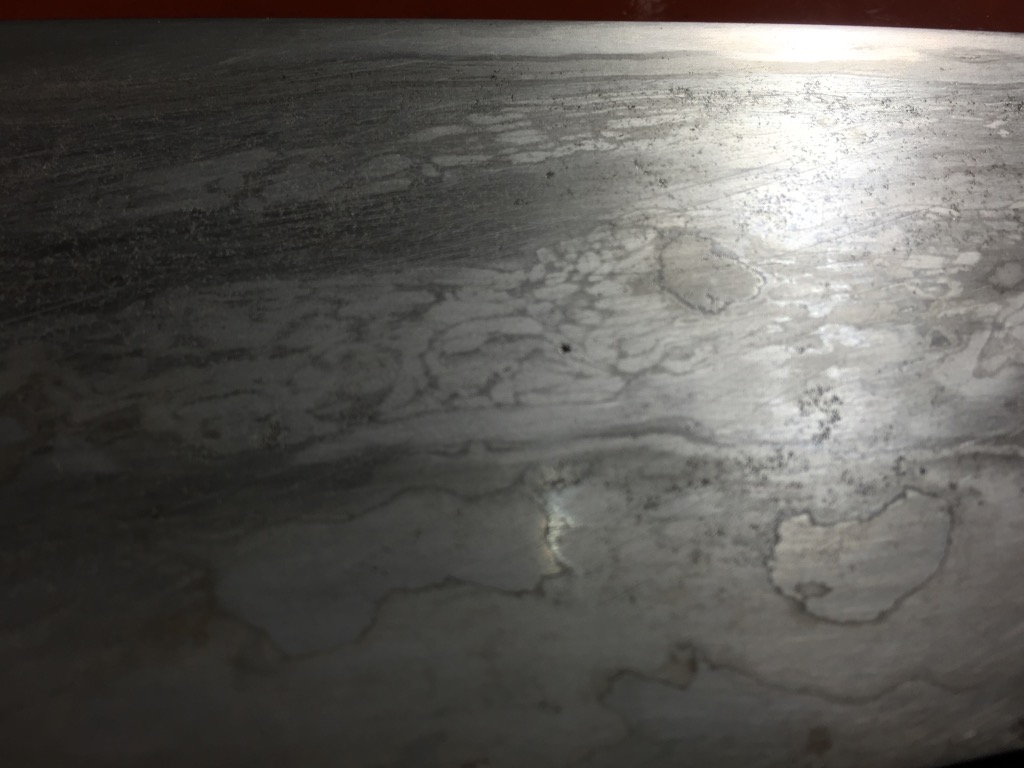

Laminations seemed to come out well on that one side!
|
![]() |
![]() |
![]() |
#8 |
Member
Join Date: Dec 2014
Posts: 33
|
![]()

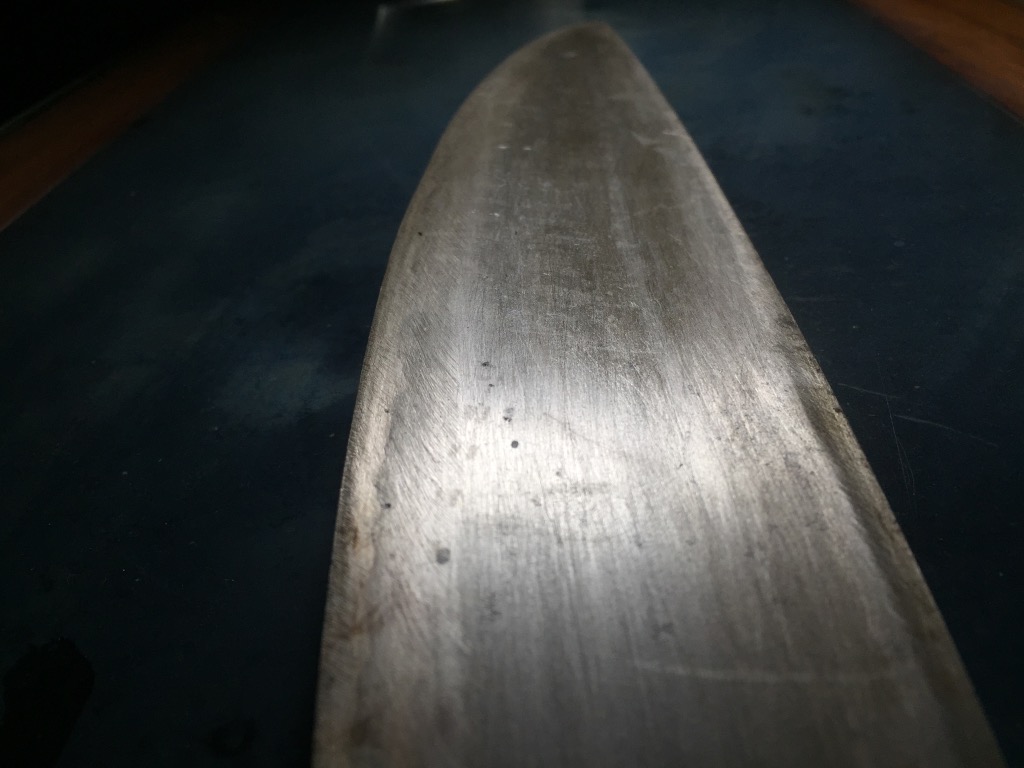

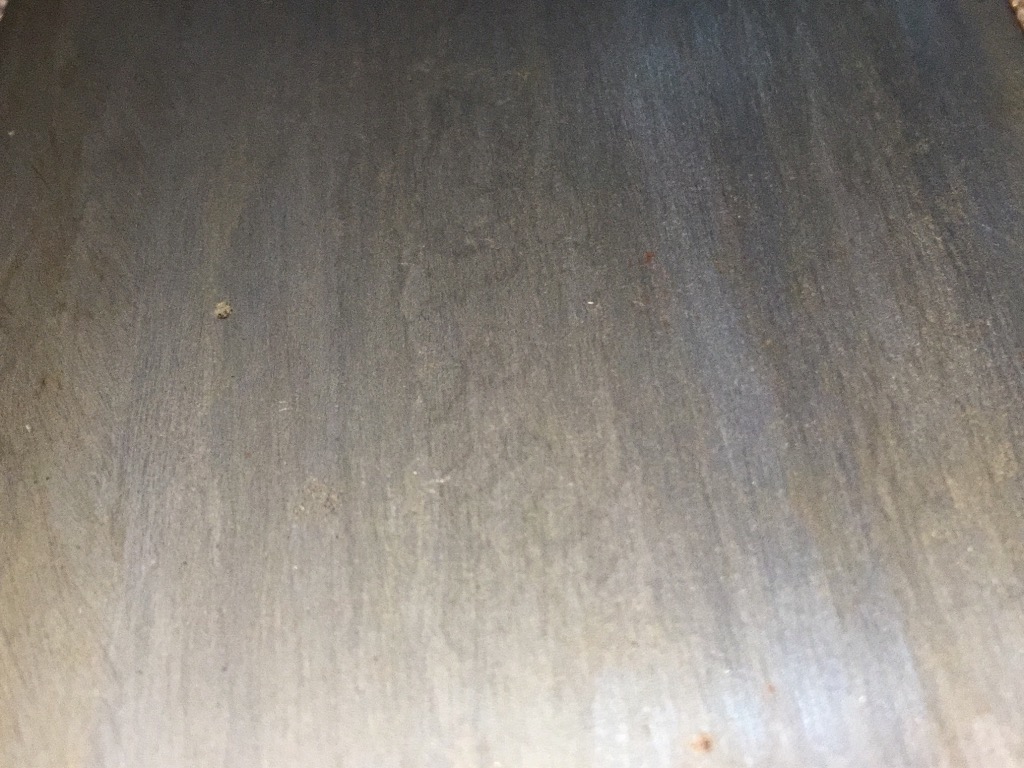

Yeah that side was also better polished. I'll have to redo the side that didn't take.
Also out of vinegar so I'm gonna buy a bigger bottle. |
![]() |
![]() |
![]() |
#9 | |
Member
Join Date: Aug 2007
Location: Germany, Dortmund
Posts: 8,716
|
![]() Quote:
in my experience it's often the case that by one side the lamination come out better as by the other one. But the blade would benefit from a better and finer polish for sure. Best regards, Detlef |
|
![]() |
![]() |
![]() |
#10 | |
Member
Join Date: Apr 2005
Posts: 3,252
|
![]()
Hello Detlef,
Quote:
Joren, I would not try to polish out deep scratches since this would mean removing a lot of metal. It's often enough to remove the light scratches for getting a nicer look. And don't use power tools... ![]() Regards, Kai |
|
![]() |
![]() |
![]() |
#11 |
Member
Join Date: Dec 2014
Posts: 33
|
![]()
Noted Detlef, Kai, and many thanks.
Yes it took me a few hours' worth of 15 minute breaks at the office to get the polish to a decent level at 1000 grit on one side (spending 90% of the time on 600 grit). I might spend another few hours just to fix the less attractive side. The difference is quite stark in person. |
![]() |
![]() |
![]() |
|
|
