crossbow drawing

crossbowmaker · 24th May 2022, 02:32 PM

hey guys,

I am new to this forum!

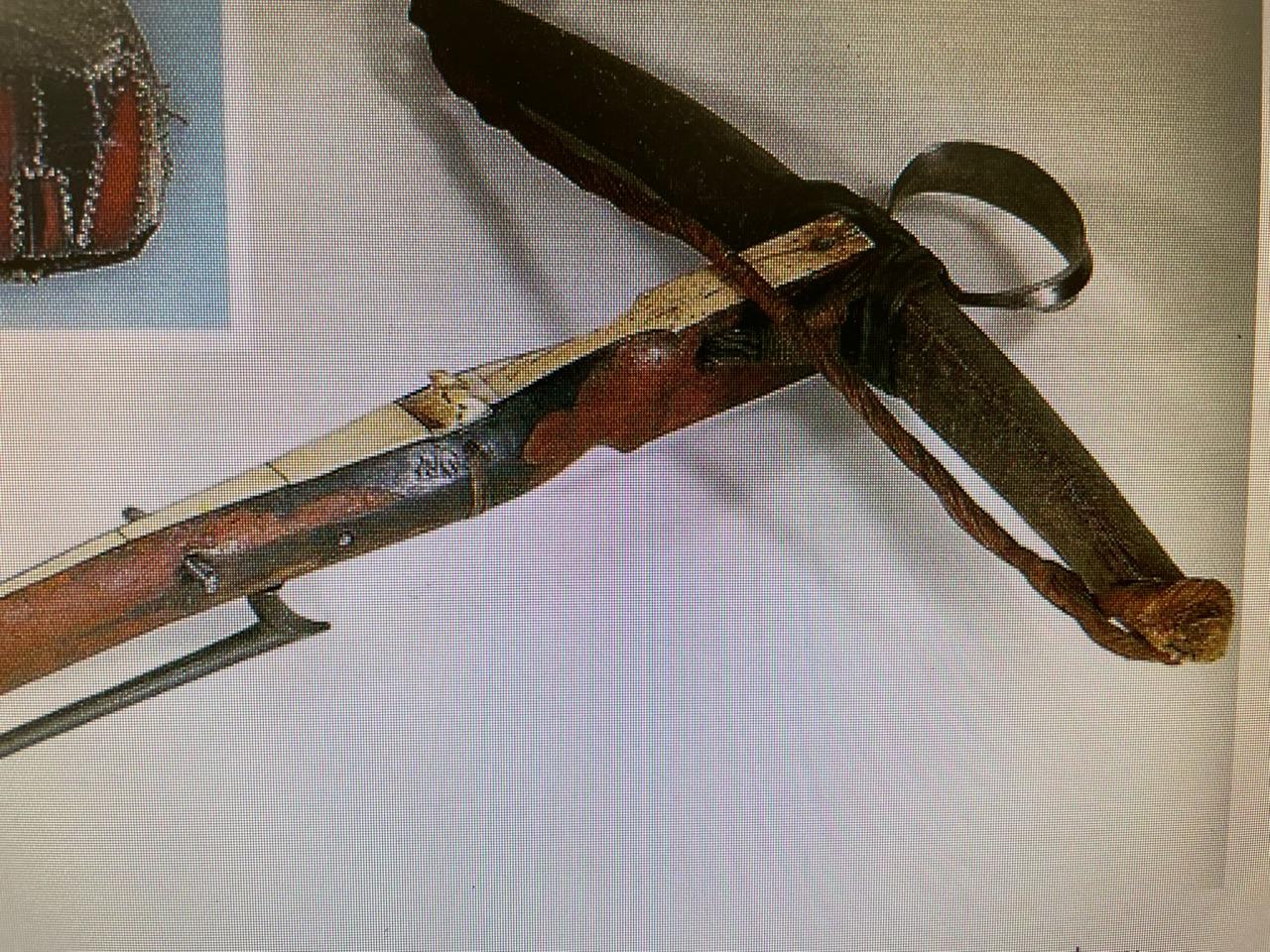

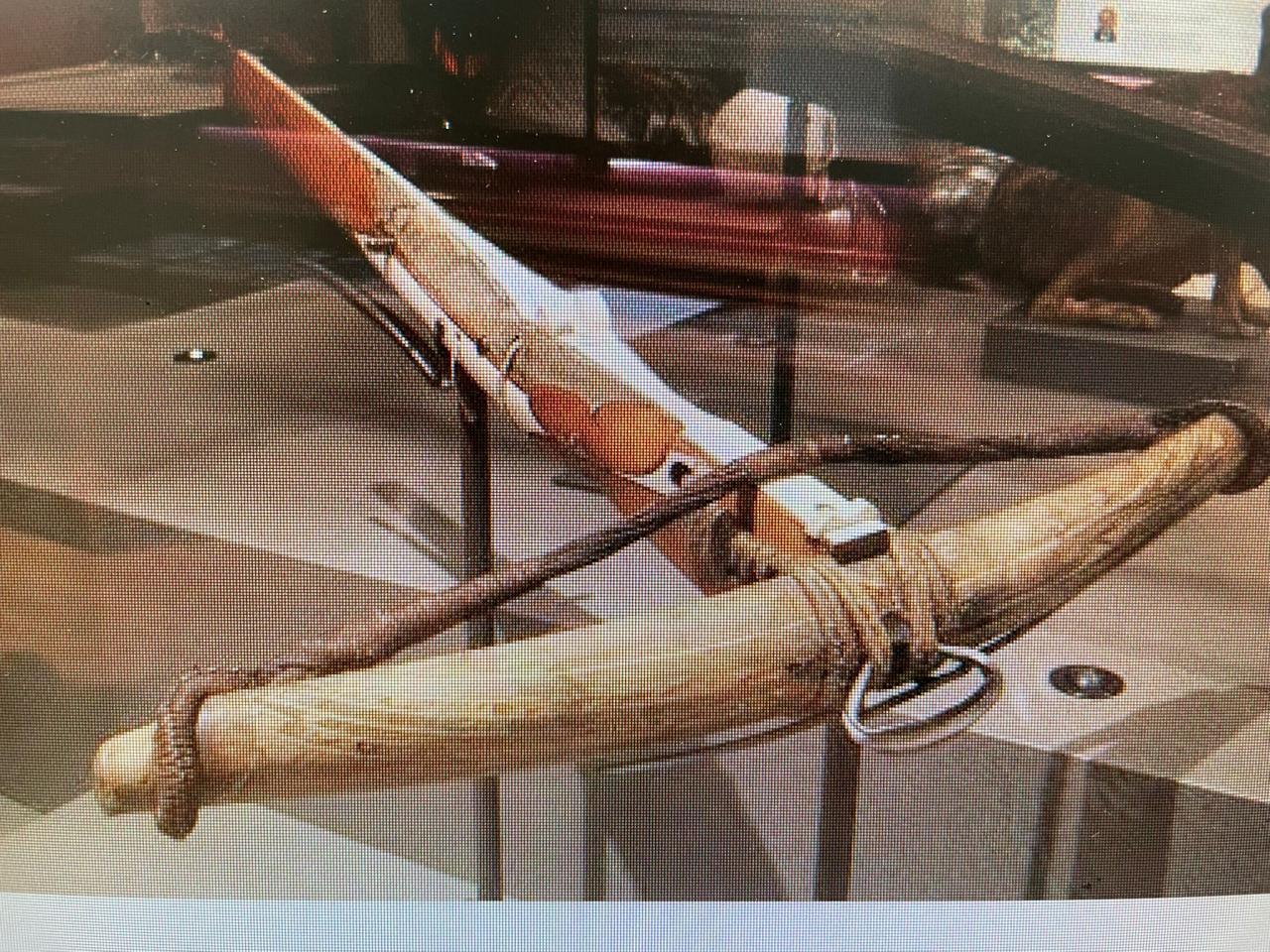

I want to make a replica of one of these crossbows.

Does anyone have a drawing with dimensions?

Or a CAD drawing?

That will be great!

fernando · 24th May 2022, 04:02 PM

Welcome to the forum, crossbowmaker.
You are certainly aware that the construction of replicas is not our forum hobby.
I wonder whether this example with respective specs from page 92 of " Crossbows in the Royal Netherlands Army Museum" is of any use.

.

crossbowmaker · 24th May 2022, 06:40 PM

Dear Fernando, Thank you for the sizing image! are there perhaps more arcs in the book?

I like to hear from you!

toaster5sqn · 25th May 2022, 06:13 AM

Tod's Workshop sells crossbow plans (todcutler.com)
He also sells replica crossbows if your pocket is deep enough(todsworkshop.com).
Robert

-

fernando · 25th May 2022, 09:34 AM

Quote:

Originally Posted by crossbowmaker

Dear Fernando, Thank you for the sizing image! are there perhaps more arcs in the book?

I like to hear from you!

The book is all about crossbows; many with measurements.

.

corrado26 · 25th May 2022, 12:47 PM

There is an other book on crossbows:

fernando · 25th May 2022, 01:02 PM

crossbowmaker is looking for specs, Udo

.

crossbowmaker · 25th May 2022, 07:47 PM

hey guys, this isn't going to be my first crossbow i make. I'm sending some pictures of my earlier project. I now want a slightly more decorated one. with bone or antler inlay work. also the roller nut is antler. only the shape of the “stock” is a problem for now. I hope someone has a good drawing!

crossbowmaker · 1st June 2022, 07:05 PM

hey guys I spent a few hours myself, and this is the result. let me know what you think

fernando · 1st June 2022, 08:12 PM

Crossbowmaker, are you sure there are no websites more dedicated to the making of replicas ?.
Have you read in the first page of this forum what its scope is about ?

http://www.vikingsword.com/vb/showthread.php?t=23414

I am sure you will find specialized venues in the internet where you may reach for results to your issues better than in here

.

Keep safe.
Fernando

David · 7th June 2022, 03:50 PM

Crossbowmaker, i believe Fernando has a point about your needs and what this particular forum is focussed on not really being in sync.
Are you familiar with this site. I think it might be more what you need for your work.
https://thearbalistguild.forumotion.com
